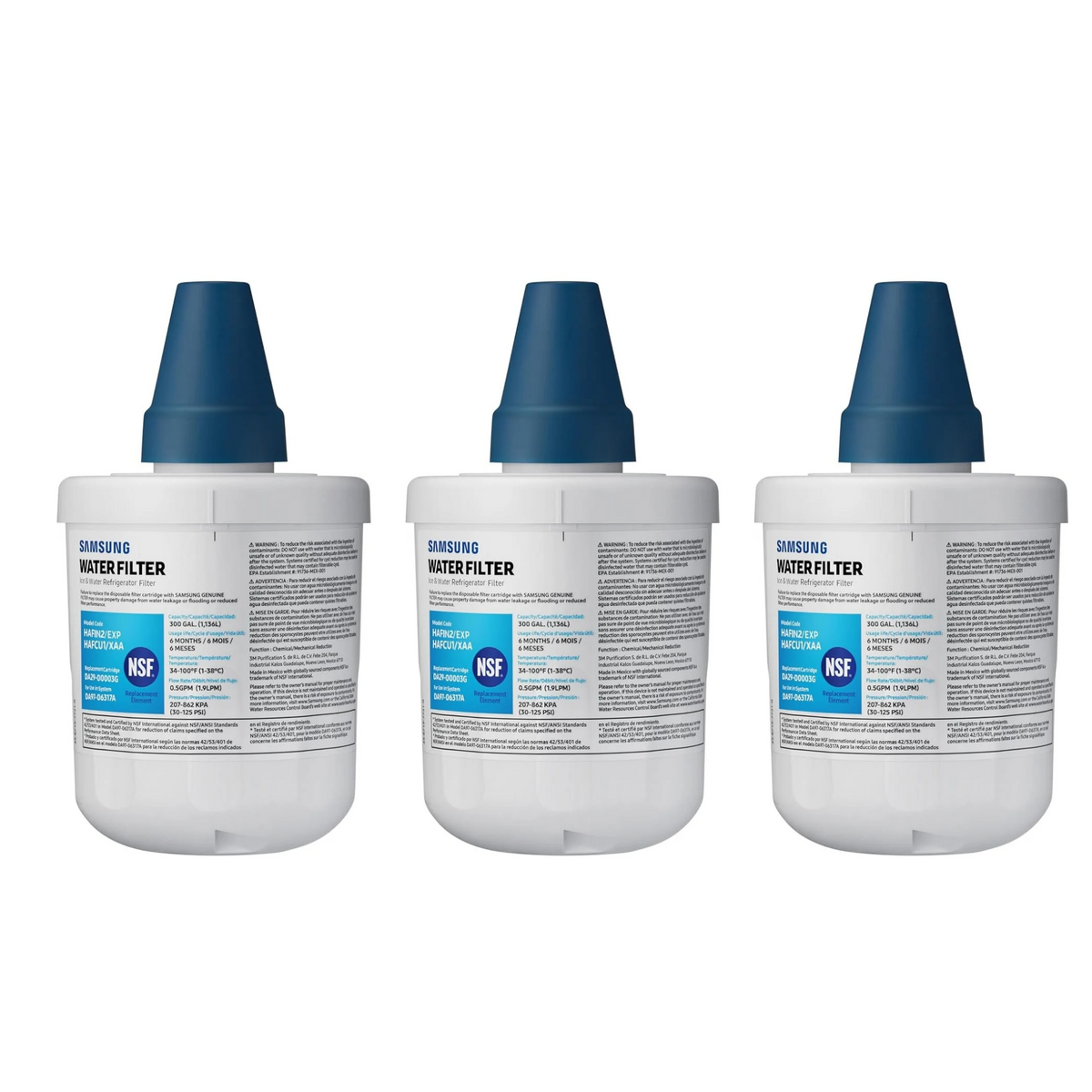

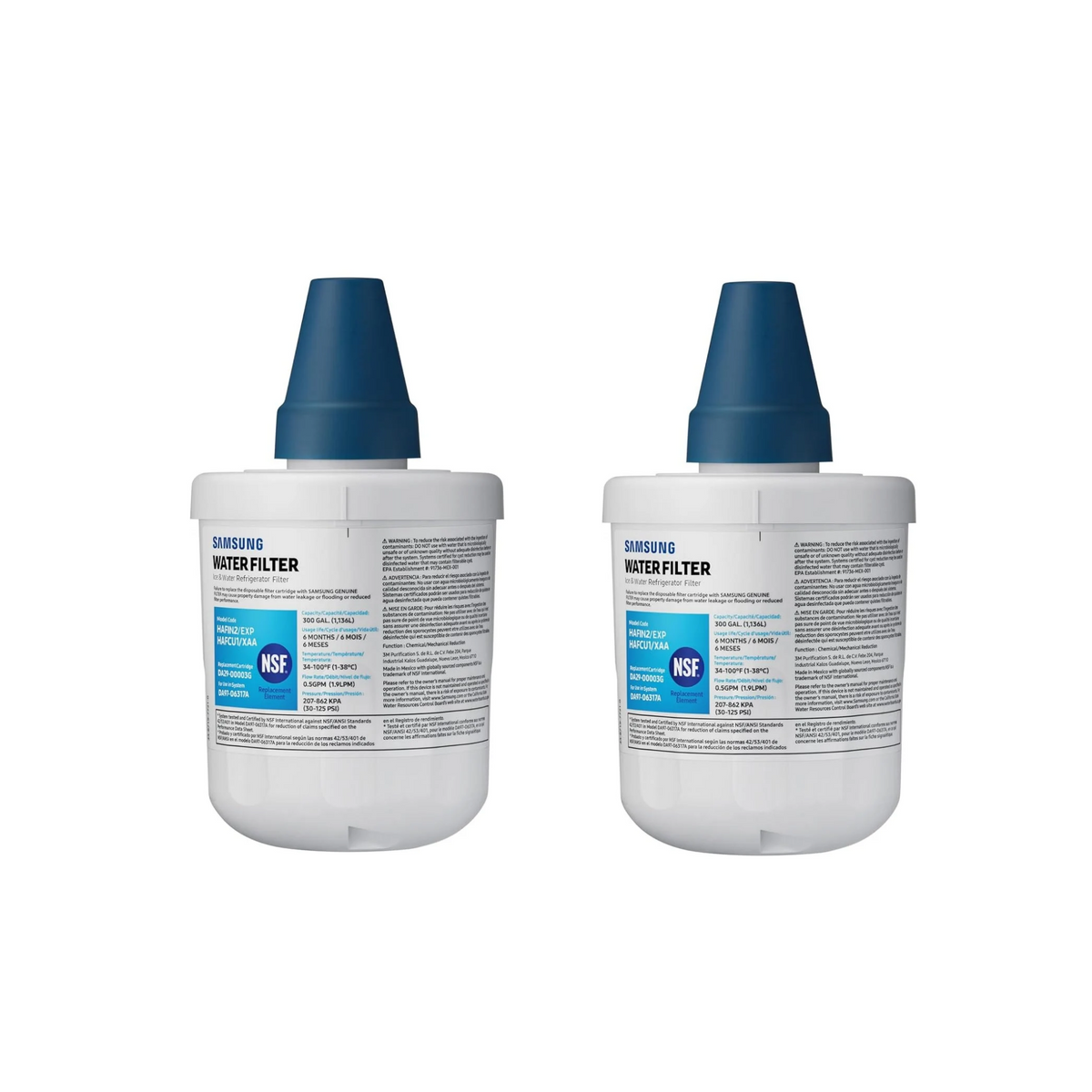

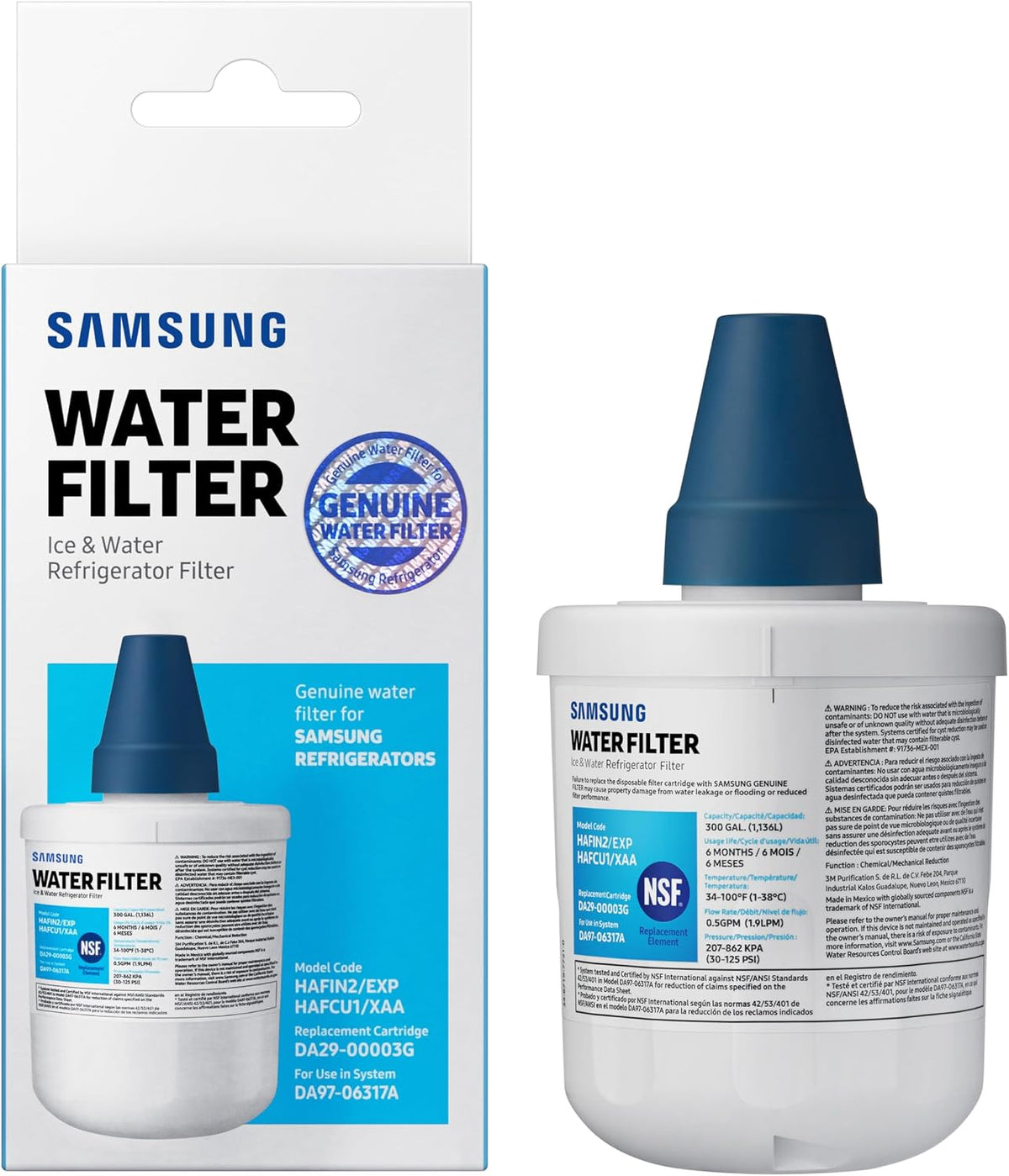

Samsung HAFCU1/XAA Refrigerator Water Filter Replacement

Restore your refrigerator’s water filtration with the Samsung HAFCU1/XAA replacement cartridge. Designed for selected Samsung side-by-side and French-door refrigerators, this internal filter uses carbon-block media to help reduce chlorine taste and odour, along with other specified contaminants. Check your refrigerator’s model number and existing filter reference before ordering to ensure a suitable fit.

Product Details

Specification	Details
Product Name	Samsung HAFCU1/XAA Refrigerator Water Filter
Filter Model	HAFCU1/XAA
Replacement Cartridge Code	DA29-00003G
Related Part Reference	DA29-00003B
Filter Media	Carbon block
Rated Capacity	300 gallons (approximately 1,136 litres)
Typical Replacement Interval	Approximately 6 months, depending on water quality and usage
Certification	NSF/ANSI 42 and 53, subject to the applicable model listing
Installation Type	90-degree rotate-and-lock
Application	Refrigerator drinking water and ice
Compatibility	Selected Samsung refrigerator models

Key Features

Carbon-Block Filtration

The carbon-block media helps reduce chlorine taste and odour, supporting better-tasting water for drinking and everyday use.

Rated for 300 Gallons

The cartridge has a stated capacity of 300 gallons. Actual service life depends on water quality, household usage and the refrigerator's maintenance guidance.

Specified Contaminant Reduction

The applicable NSF/ANSI 53 listing covers reductions of certain contaminants, including lead, cysts, turbidity and other specified substances. Check the relevant certification details for the exact claims.

Rotate-and-Lock Installation

The quarter-turn design allows the cartridge to lock into a compatible filter housing. Follow the refrigerator manual during removal and installation.

Recognisable Filter References

The HAFCU1/XAA model and DA29-00003G cartridge code help identify the replacement. DA29-00003B is a related earlier reference, but compatibility should be checked against the refrigerator itself.

Compatibility

This filter is intended for selected Samsung refrigerators with compatible internal filtration systems.

• Filter model: HAFCU1/XAA
• Replacement cartridge code: DA29-00003G
• Related reference: DA29-00003B
• Appliance types: Selected Samsung side-by-side and French-door refrigerators

Check your refrigerator’s full model number and existing filter code before purchase. Some older refrigerators may have filter-housing differences that affect fit.

Contaminants It Reduces

Under the applicable certified test conditions, this filter helps reduce certain contaminants.

• Chlorine taste and odour: Helps improve the taste and smell of drinking water.
• Lead: Reduction is subject to the applicable certified performance claims.
• Cysts and turbidity: The relevant NSF/ANSI 53 listing covers specified reduction claims.
• Other specified substances: Refer to the applicable certification data for the full list of tested contaminants.

This filter does not make microbiologically unsafe water safe to drink and cannot replace suitable disinfection.

Installation Instructions

1. Confirm that your refrigerator uses the HAFCU1/XAA filter.
2. Locate the filter compartment and follow the appliance manual.
3. Turn the existing cartridge approximately 90 degrees to unlock it, then remove it as directed.
4. Remove the protective covering from the replacement cartridge.
5. Insert the cartridge into the housing and turn it until securely locked.
6. Check that the filter is correctly seated and that the compartment is closed.
7. Flush the filter according to the refrigerator instructions before using the water or ice dispenser.
8. Check for leaks and reset the filter indicator if your appliance has one.
9. Replace the cartridge according to the recommended schedule and the refrigerator's filter indicator.
